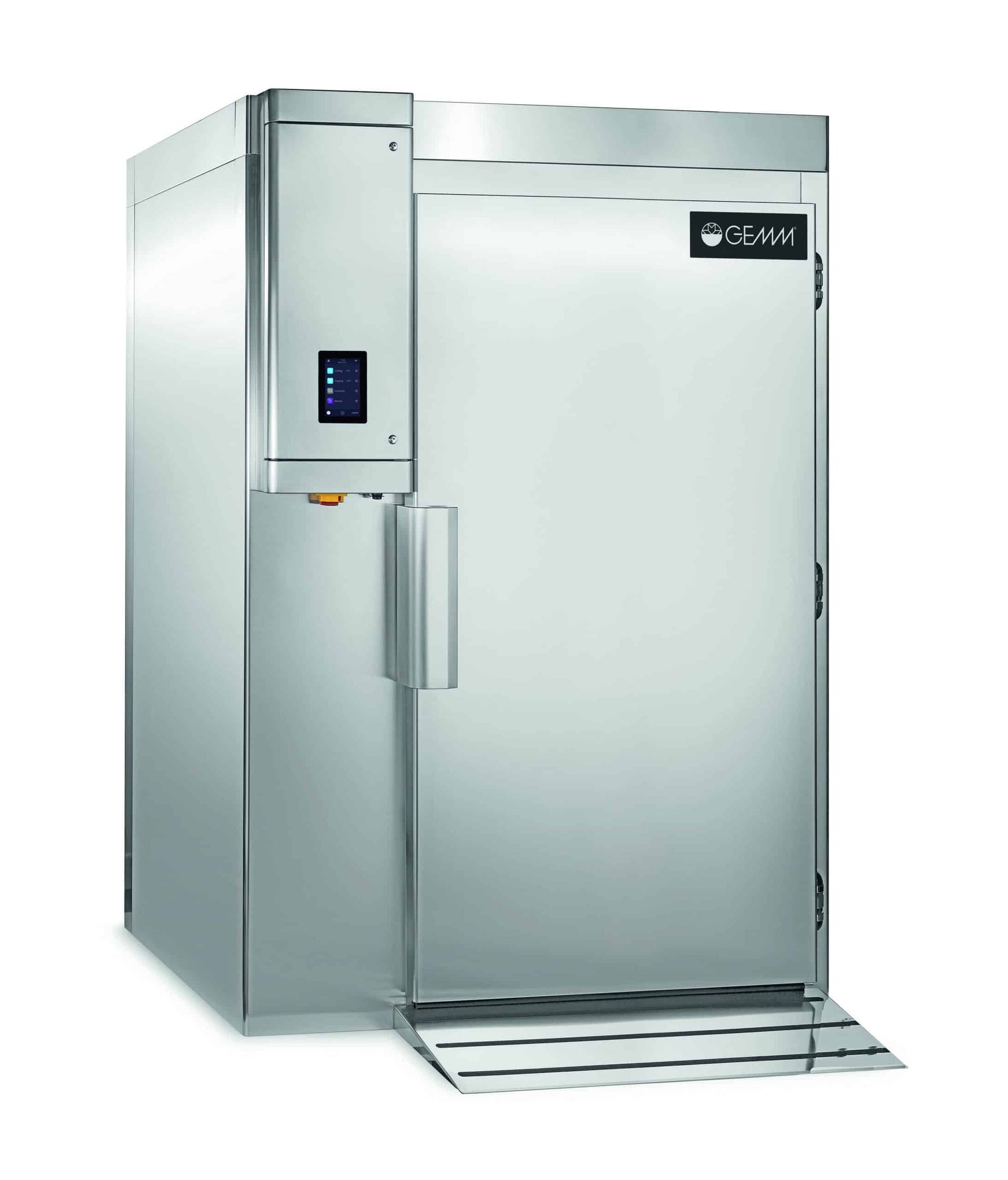

Eurodib Gemm Blast Freezer 40''X31 1/2'' Trolley 230v/60hz W/Gas Comp (BCC6015GC)

General Features

• Remote condensing unit (10 M max.)
• Working cycle: by time or probe
• Core probe (“L” handle) included for core temperature control
• Automatic core probe detection: switch to probe mode
• Internal LED light
• Immediate fan interruption upon door opening
• Heated frame and threshold, three­ chamber magnetic seal, compensation valve
• Internal stainless steel AISI 304 finish and rounded corners with R=15 mm
• Insulating panels (100 mm thick): injected with CFC and HCFC-free polyurethane foam of 42 Kg/m3 between two AISI 304 stainless steel sheets, with thermal transmittance of U=0.23 W/m2K
• Insulated (90 mm) and reinforced floor in 15/1O mm AISI 304 stainless steel
• Suitable for recessed floor installation
• Standard ramp included (21.7”)

*Trolley not included

Control Panel

• Hard/soft chilling and blast freezing
• Customize the parameters of each cycle: time, ventilation speed, temperature,
• Create your own recipe book: save up to 100 different chilling/freezing cycles
• Special preset cycles: pre-cooling, ice cream hardening, room drying, fish sanitation
• Manual and automatic defrost
• Customized blast chilling cycle: create 4 distinct phases according to time, room temperature, product temperature and ventilation
• Automatic storage function and option to save the recipe at the end of each new cycle
• Preset recipes included
• Continuous diagnostic and alarm display

Internal Features

• No. 1 vertical evaporator
• high thermal exchange coefficient
• Multi-circuit
• Anticorrosion cataphoresis treatment
• Air conveyors facilitate high performance without dehydrating products
• Evaporators equipped with no. 3 Air speed: 0.7-7 m/s, variable through the control board. Air range for each evaporator: 10,500 m3/h
• Automatic defrost outside working cycles only
• Accessible evaporator wall to facilitate cleaning and maintenance
• Stainless steel bumper

Remote Condensing Unit

• Remote condensing unit (6.0 HP) with BITZER compressor
• Constant monitoring with condensing unit control panel
• Alarms for low/high pressure, compressor oil overheating, and compressor thermal overload are displayed simultaneously on the blast chiller and condensing units’ control boards
• Supplied with 10 m pipe kit for conden­ sing unit installation (32.8 ft.)

USB PORT: Upload and download recipes. Download HACCP alarms. Historical machine operation file format Excel (.csv). Machine parameters and updates.

WI-FI CONNECTION: Data transfer with the remote monitoring system via Wi-Fi connection. Connect and monitor the blast chiller in real time from smartphone and PC and receive alerts in case of abnormal activity. Download alarms and HACCP alarms. Machine operation history in Excel or graphic format.
parameters.

OPTIONS (Available upon request)

• Ion sterilizer
• Additional pass-through door
• Water cooled condensing unit
• Low noise housing condensing unit
• Ramp L = 110 cm
• Door with left hinges
• Thawing function
• Version without condensing unit
